Name: سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AXG-42S - کالاریزان ( نمایندگی دوربین مداربسته هایک ویژن شیراز )
SKU: 30440065

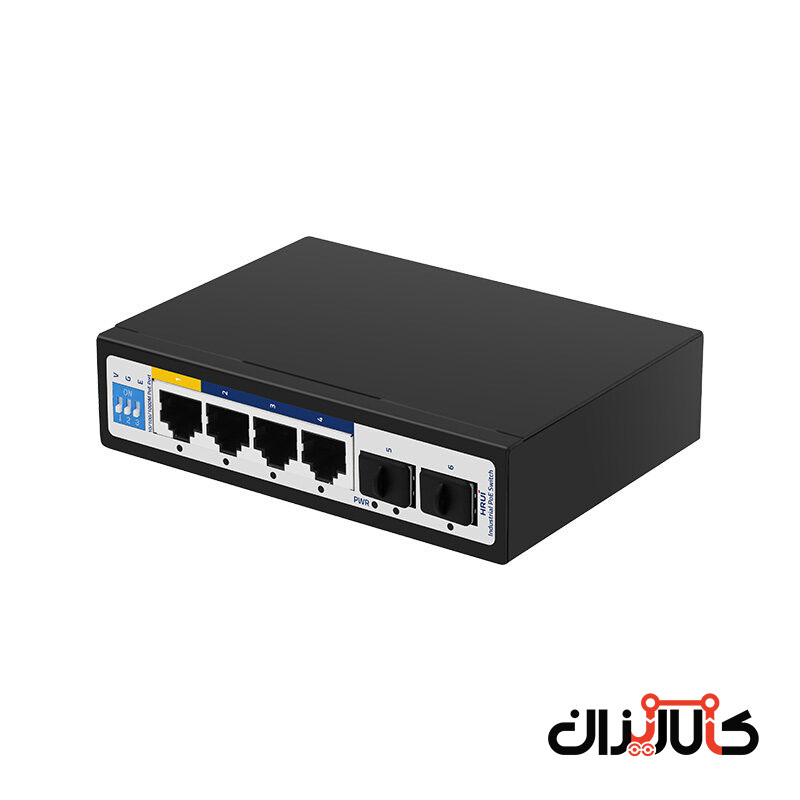

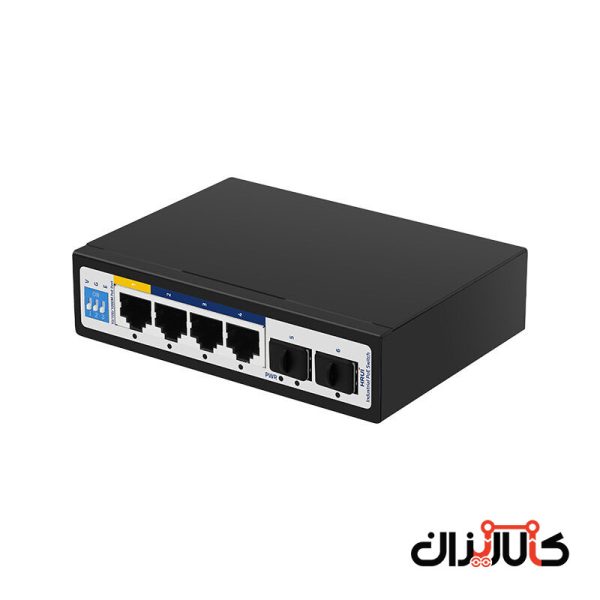

سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AXG-42S

برای قیمت تماس بگیرید

سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink SFP
سوئیچ PoE صنعتی
توان کل 65 وات
پشتیبانی پورت اول از BT 90W
48 ماه وارانتی بی قید و شرط (24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)

Specification
I/O Interface
Power	DC 48～55V
Ethernet	۴* Gigabit PoE Ports (Port 1 supports 90W) ۲* Gigabit SFP Port
Performance
Bandwidth	12Gbps
Pack forwarding rate	۸.928Mpps
MAC address	8K
Jumbo frame	۹.6Kbytes
Transfer mode	Storage & forward
MTBF	۱۰۰۰۰۰ Hours
Standards
Network protocol	IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z
PoE standard	PoE standard: IEEE802.3af /IEEE802.3at Single port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at self-adaptive PoE port output voltage: DC 48-55V PoE power supply wire core:1/2+ ; 3/6-
Indsutry standard	EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
Network Medium	10BASE-T: Cat3, 4, 5 UTP (≤۱۰۰ m) 100BASE-TX: Cat5 or above UTP (≤۱۰۰ m) 1000BASE-TX: Cat5 or above UTP (≤۱۰۰ m)
Optical medium	Multimode fiber: 850nm, 1310nm transmission distance: 550m/2KmSingle-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
Certificate
Safety certificate	CE, FCC, RoHS
Environment standard
Working environment	Working temperature: -40～۷۵℃ Storage temperature: -40～۸۵℃ Humidity: 5%~95 % (non-condensing)
Physical specification
Structure size	Product dimension: 1208730 mm Package dimension: 17513055mm Product N.W: 0.441 KG Product G.W: 0.530 KG (without power)
Packaging info	Carton MEAS: 540290375mm Packing Qty: 40 PCS Packing Weight: 22.2 KG
Power voltage	Voltage input: DC48～55VPower cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1
Packaging List	۱. Industrial Switch: 1 PC ۲. User Manual: 1 PC ۳. Certification: 1 PC ۴. Pull-arm: 1 PC
Indicator
LED Indicator	PWR, 1-6 green light
PWR	On: Powered on Off: Powered off
۱-۶ green light	On: Link normal Off: Link off Flashing: Link data transmitting
DIP function	V, G, E (Up open, down close)
V	V: VLAN mode, ports 1 to 4 are isolated and can communicate with ports 5 and 6
G	G: Normal mode
E	E: Extend mode, ports 1-4 are reduced to 10M and can be extended to 250m

تمام شده
