Name: سوئیچ POE اچ آر یو آی HR901-AFG-42NS-120 - کالاریزان ( نمایندگی دوربین مداربسته هایک ویژن شیراز )
SKU: 30440051
Price: 4600000000 IRR
Availability: OutOfStock

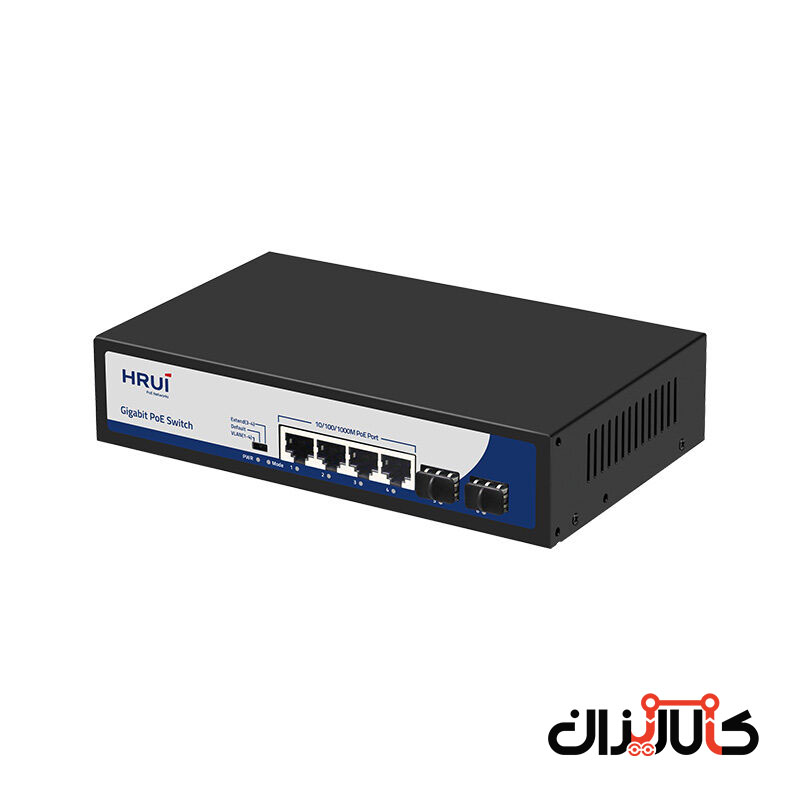

سوئیچ POE اچ آر یو آی HR901-AFG-42NS-120

۴,۶۰۰,۰۰۰ تومان

سوئیچ 4 پورت 10/100Mbps PoE و 2 پورت SPF Uplink
سوئیچ PoE
توان کلی 120 وات
30 ماه وارانتی بی قید و شرط

در انبار موجود نمی باشد

Specifications
I/O Interface
Power	Input: AC 100-240V, 50/60Hz
Ethernet	۴ Port 10/100/1000M PoE +2 Port 1000M SFP
Performance
Switching Capacity	۱۲ Gbps
Forwarding Rate	۸.928Mpps
Packet Buffer	1Mbit
MAC Address	2K
Transfer Mode	Store and forward
Standard
Network protocol	IEEE802.3IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
PoE Protocol	IEEE802.3af （۱۵.4W）IEEE802.3at （30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6-
Network Medium	10BASE-T: Cat 3、۴、۵ UTP(≤۱۰۰ meter)100BASE-TX: Cat5 or more UTP (≤۱۰۰ meter) 1000Base-TX : Cat5 or more UTP/STP(≤۱۰۰ meter)
Optical Media	Multimode fiber : ۵۰/۱۲۵、۶۲.۵/۱۲۵、۱۰۰/140umSingle mode fiber : 8/125、۸.۷/۱۲۵、۹/۱۲۵、۱۰/125um
Protection
Certificate	CE、FCC、RoHS
Environment
Environment	Working Temperature：-۱۰~۵۰°CStorage Temperature：-۴۰~۷۰°C Working Humidity ：۱۰%~۹۰%，non-condensing Storage Temperature：۵%~۹۵%，non-condensing
Physical Features
Dimension	Product Dimension: 20011844.5mmPackage Dimension : 24519060mm N.W：۰.65kg G.W：۰.95kg
Packing Info	Carton MEAS：۵۲۰۳۲۰400mmPacking Qty：۲۰ units Packing Weight：20KG
Power Voltage	Input Voltage ：AC 100-240 VPower supply：52V2.3A
power	Product power: maximum 10WPOE power: maximum 110W
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
Indicators
DIP Switch	VLAN : Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive; Extend : Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
LEDs	PWR（power supply），Mode（DIP），۱-۶（Link&Data）

تمام شده

Click to enlarge

Back to products

افزودن به لیست علاقه مندی ها

شناسه محصول: 30440051 دسته: تجهیزات شبکه, سوئیچ 4 پورت POE, سوئیچ POE برند: HRUI

توضیحات

Specifications
I/O Interface
Power	Input: AC 100-240V, 50/60Hz
Ethernet	۴ Port 10/100/1000M PoE +2 Port 1000M SFP
Performance
Switching Capacity	۱۲ Gbps
Forwarding Rate	۸.928Mpps
Packet Buffer	1Mbit
MAC Address	2K
Transfer Mode	Store and forward
Standard
Network protocol	IEEE802.3IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
PoE Protocol	IEEE802.3af （۱۵.4W）IEEE802.3at （30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6-
Network Medium	10BASE-T: Cat 3、۴、۵ UTP(≤۱۰۰ meter)100BASE-TX: Cat5 or more UTP (≤۱۰۰ meter) 1000Base-TX : Cat5 or more UTP/STP(≤۱۰۰ meter)
Optical Media	Multimode fiber : ۵۰/۱۲۵、۶۲.۵/۱۲۵、۱۰۰/140umSingle mode fiber : 8/125、۸.۷/۱۲۵、۹/۱۲۵、۱۰/125um
Protection
Certificate	CE、FCC、RoHS
Environment
Environment	Working Temperature：-۱۰~۵۰°CStorage Temperature：-۴۰~۷۰°C Working Humidity ：۱۰%~۹۰%，non-condensing Storage Temperature：۵%~۹۵%，non-condensing
Physical Features
Dimension	Product Dimension: 20011844.5mmPackage Dimension : 24519060mm N.W：۰.65kg G.W：۰.95kg
Packing Info	Carton MEAS：۵۲۰۳۲۰400mmPacking Qty：۲۰ units Packing Weight：20KG
Power Voltage	Input Voltage ：AC 100-240 VPower supply：52V2.3A
power	Product power: maximum 10WPOE power: maximum 110W
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
Indicators
DIP Switch	VLAN : Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive; Extend : Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
LEDs	PWR（power supply），Mode（DIP），۱-۶（Link&Data）
