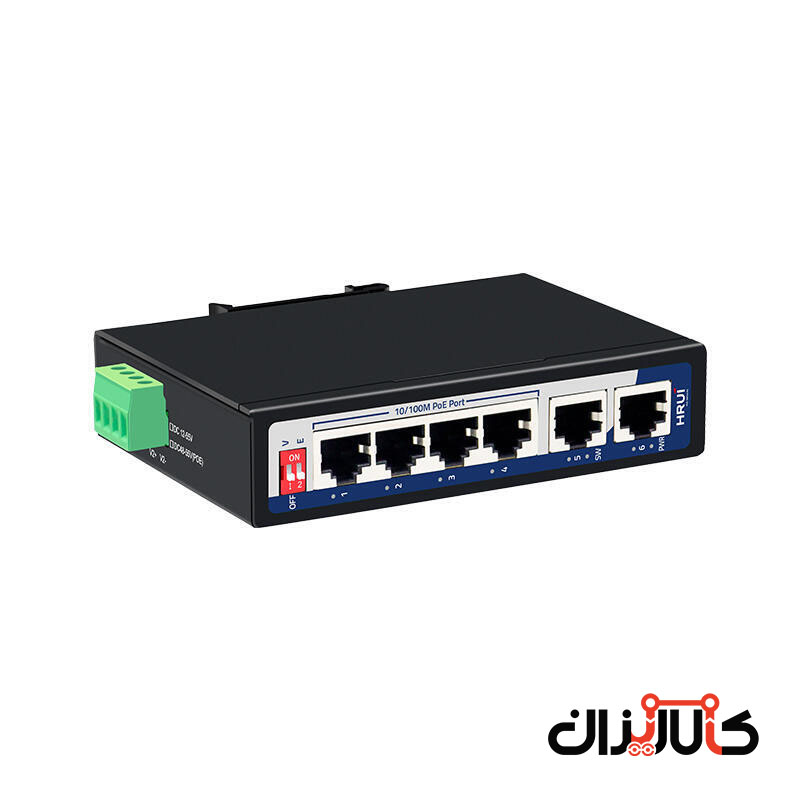

سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AF-42

برای قیمت تماس بگیرید

سوئیچ 4 پورت PoE و 2 پورت Uplink اترنت
سوئیچ PoE صنعتی
توان کل 65 وات
48 ماه وارانتی بی قید و شرط
(24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)

General parameter
Product name	۶ ports 10M/100M Industrial intelligence standard POE Switch
Model	HR500-AF-42
Connector Type	۴۱۰/100M POE ports +2 10/100M Uplink Ethernet port
Network Protocols	IEEE802.3IEEE802.3u IEEE802.3x
POE Parameters	POE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
	Each port Max：۱۵.۴ W (IEEE 802.3af)Each port Max：۳۰ W (IEEE 802.3at)
	POE compatibility：IEEE 802.3af/at adaptive
	POE port output： DC 52V
	POE power supply core：۱/۲+ ; ۳/۶-
Network Media	10BASE-T: Cat3,4,5 UTP(≤۱۰۰ m)10BASE-T：Cat6 or more UTP(≤۲۵۰ m) 100BASE-TX: Cat5 or more UTP(≤۱۰۰ m)
LED indicator	PWR(Power supply indicator Red )	Lighting：PoweredUn-Light：No Power
	SW(DIP indicator Green)	۱	۲	Indicate	Mode
		off	off	No light	Standard swapping
		on	off	Lighting	VLAN
		off	on	Slow flash	Extend
		on	on	Quick flash	VLAN+Extend
	۱-۶(Green)	Lighting：ConnectingFlashing：Data Transmit Un-Light：Disconnect
DIP	V（VLAN）: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.
	OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed
	E（Extend）: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on;
Power Supply	Power input: DC48～55Vpower supply wiring: 4 PIN terminal block （redundancy V1+V1-,V2+V2-）
Working Environment	Operating Temperature: -40～۷۵℃Storage Temperature: -40～۸۵℃ Humidity: 5%~95 %( non-condensing)
Industry Standard	EMI: FCC Part 15, CISPR (EN55032) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
Mechanical Structure	Shell protect grade: IP40Installation: DIN rail N.W：۰.409KG G.W: 0.489KG（without power supply） Product Dimension (L×W×H): 119MM87MM28MM Package Dimension(L×W×H): 175MM130MM55MM
Certification	CE , FCC , ROHS
Package Contents	Industrial Switch： ۱ unitUser Guide：1unit Certificate warranty card：1unit
MTBF	۱۰۰,۰۰۰ hours
Warranty	۵ years
Hardware parameter
Bandwidth	۱.6Gbps
Cache	512K
Chipset	RTL8309NI
Package Forwarding Rate	۰.8928Mpps
MAC address	2K
Forwarding mode	Store-and-forward

تمام شده

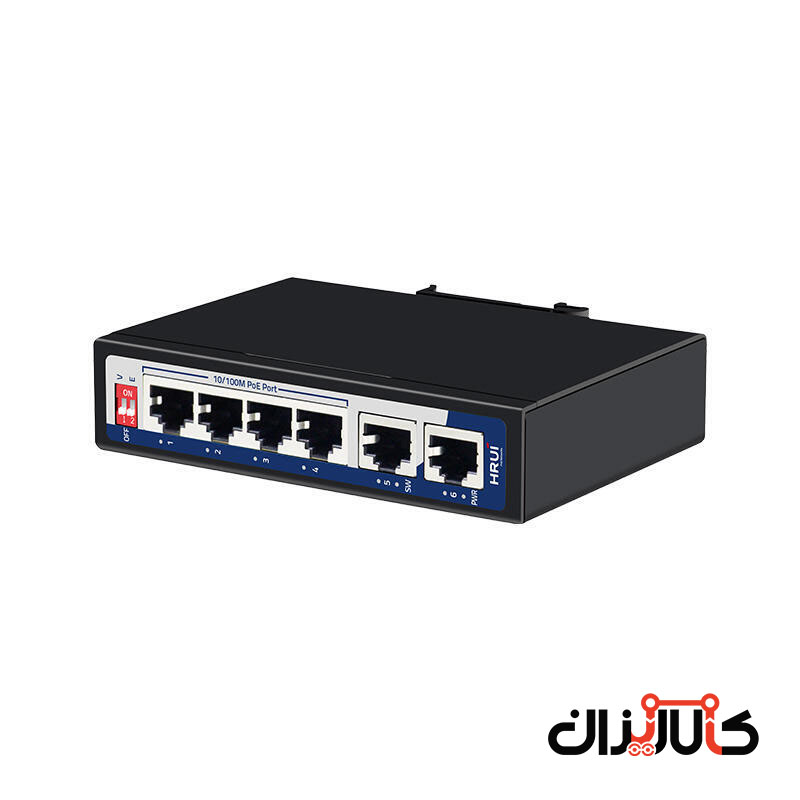

سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AF-42
