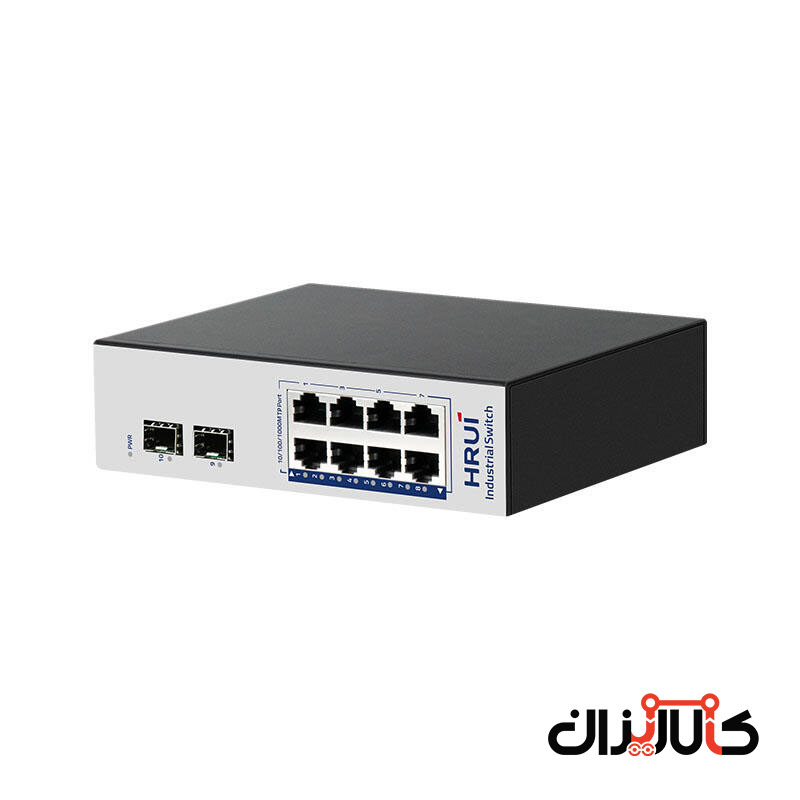

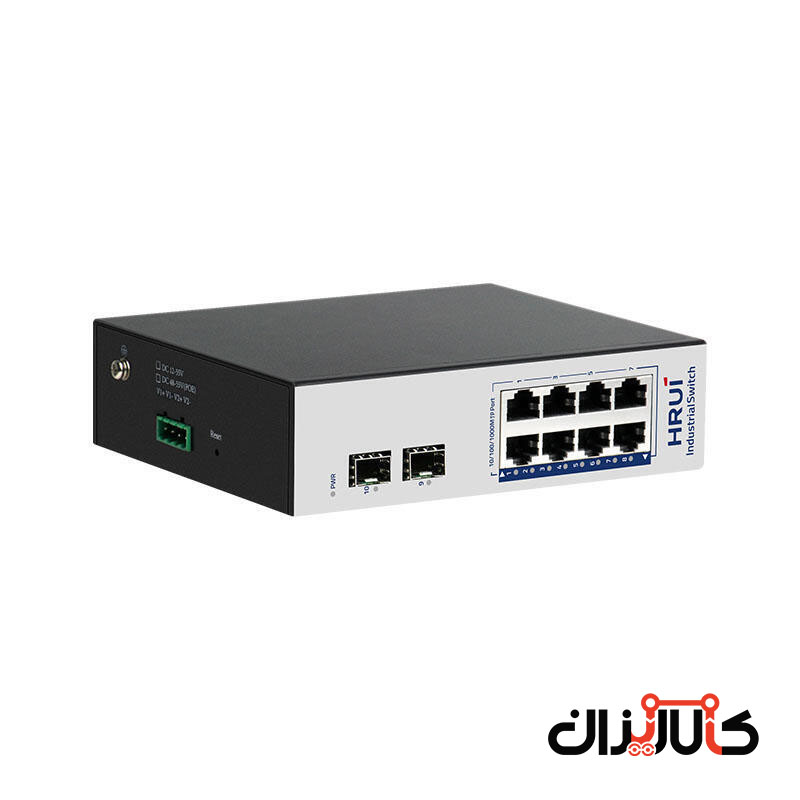

سوئیچ اترنت صنعتی گیگ HRUI HR500-SWG0082S

برای قیمت تماس بگیرید

⚠️ برای خرید محصولات لطفا در ساعات اداری با کارشناسان مجموعه تماس بگیرید.

Specifications
I/O Interface
Power	Input: DC 12-55V
Ethernet	8 * 10/100/1000M RJ45 Ports
Ethernet	2 * 10/100/1000M SFP Ports
Performance
Switching Capacity	20Gbps
Forwarding Rate	14.88Mpps
MAC Address	4K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hours
Standard
Network protocol	IEEE802.3
	IEEE802.3u
	IEEE802.3ab
	IEEE802.3z
	IEEE802.3x
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A
	EMS: EN61000-4-2 (ESD)
	EN61000-4-4 (EFT)
	EN61000-4-5 (Surge)
Network Medium	10BASE-T: Cat 3, 4, 5 UTP(≤100 meter)
	100BASE-TX: Cat5 or more UTP (≤100 meter)
	1000Base-TX: Cat5 or more UTP/STP(≤100 meter)
Protection
Certificate	CE, FCC, RoHS
Environment4
Environment	Working Temperature: -40~75°C
	Storage Temperature: -40~85°C
	Working Humidity : 10%~90%, non-condensing
	Storage Temperature: 5%~90%, non-condensing
	Working Height: Maximum 10, 000 feet
	Storage height: Maximum 10, 000 feet
Physical Features
Dimension	Product Dimension (LWH): 16013544mm
	Package Dimension (LWH): 24220786mm
	N.W: 0.73kg
	G.W: 0.90kg
Packing Info	Carton MEAS: 445445510mm
	Packing Qty: 20 units
	Packing Weight: 19KG
Power Voltage	Input Voltage: DC 12-55V
Power Voltage	Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-)
Package List	Switch 1 pcs, Pull-arm 1 pair, User manual 1 pc, Certification 1 pc
Indicators
PWR(power supply)	Lighting: Powered
PWR(power supply)	Un-Light: No Power
1-10 Green(Link&Data)	Lighting: Connecting
	Flashing: Data Transmit
	Un-Light: Disconnect

تمام شده

توضیحات

Specifications
I/O Interface
Power	Input: DC 12-55V
Ethernet	8 * 10/100/1000M RJ45 Ports
Ethernet	2 * 10/100/1000M SFP Ports
Performance
Switching Capacity	20Gbps
Forwarding Rate	14.88Mpps
MAC Address	4K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hours
Standard
Network protocol	IEEE802.3
	IEEE802.3u
	IEEE802.3ab
	IEEE802.3z
	IEEE802.3x
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A
	EMS: EN61000-4-2 (ESD)
	EN61000-4-4 (EFT)
	EN61000-4-5 (Surge)
Network Medium	10BASE-T: Cat 3, 4, 5 UTP(≤100 meter)
	100BASE-TX: Cat5 or more UTP (≤100 meter)
	1000Base-TX: Cat5 or more UTP/STP(≤100 meter)
Protection
Certificate	CE, FCC, RoHS
Environment4
Environment	Working Temperature: -40~75°C
	Storage Temperature: -40~85°C
	Working Humidity : 10%~90%, non-condensing
	Storage Temperature: 5%~90%, non-condensing
	Working Height: Maximum 10, 000 feet
	Storage height: Maximum 10, 000 feet
Physical Features
Dimension	Product Dimension (LWH): 16013544mm
	Package Dimension (LWH): 24220786mm
	N.W: 0.73kg
	G.W: 0.90kg
Packing Info	Carton MEAS: 445445510mm
	Packing Qty: 20 units
	Packing Weight: 19KG
Power Voltage	Input Voltage: DC 12-55V
Power Voltage	Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-)
Package List	Switch 1 pcs, Pull-arm 1 pair, User manual 1 pc, Certification 1 pc
Indicators
PWR(power supply)	Lighting: Powered
PWR(power supply)	Un-Light: No Power
1-10 Green(Link&Data)	Lighting: Connecting
	Flashing: Data Transmit
	Un-Light: Disconnect
