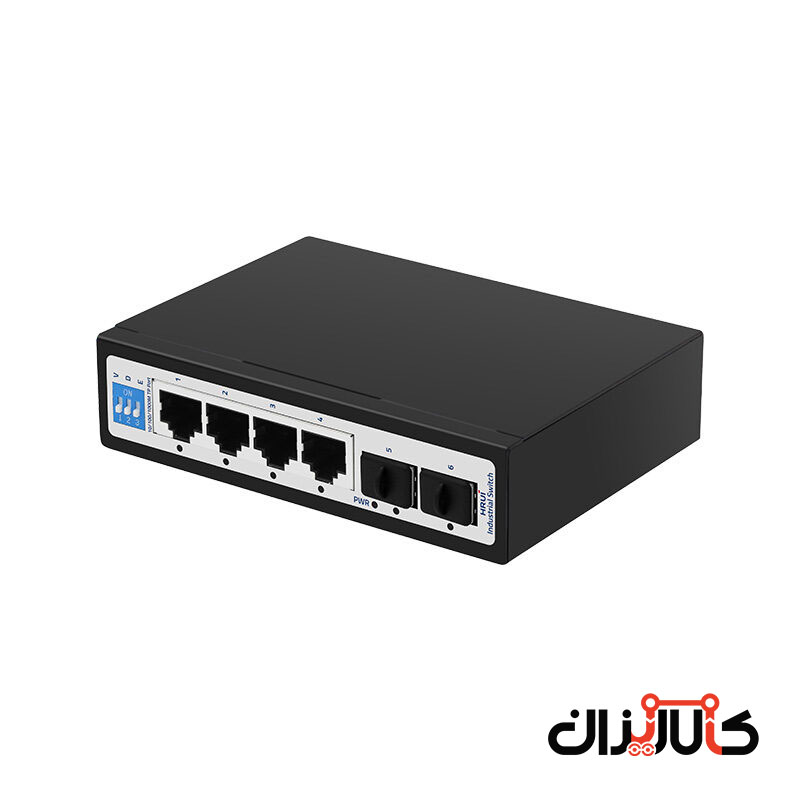

سوئیچ اترنت صنعتی گیگ HR500-SWG1042S

برای قیمت تماس بگیرید

سوئیچ 4 پورت 10/100/1000Mbps اترنت
2 پورت Uplink گیگ SFP
سوئیچ اترنت صنعتی
48 ماه وارانتی بی قید و شرط
(24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)

Technical Parameter
Input/output interface
Power	DC 12～55V
Ethernet	۴ ۱۰/۱۰۰/1000M RJ45 Port2 Gigabit SFP Ports
Performance
Bandwitdth	12Gbps
Package Forwarding Rate	۸.928Mpps
MAC Address	1K
Jumbo frame	۹.6Kbytes
Forwarding mode	Store and forward
MTBF	۱۰۰۰۰۰
Standard
Network Protocols	IEEE802.3IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z
Industry Standard	EMI: FCC Part 15, CISPR (EN55022) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
Network Media	10BASE-T: Cat5 or more UTP(≤۱۰۰ m)100BASE-TX: Cat5 or more UTP(≤۱۰۰ m) 1000BASE-TX: Cat5 or more UTP(≤۱۰۰ m)
Fiber Media	Multi-mode：850nm，1310nm. transmission distance：550m/2KmSingle-mode：1310nm，1550nm. transmission distance：۲۰/۴۰/۶۰/۸۰/۱۰۰/120Km
Certification
Safety certificate	CE、FCC、RoHS
Environmental standards
Working Environment	Operating Temperature: -40～۷۵℃Storage Temperature: -40～۸۵℃ Humidity: 5%~95 %( non-condensing)
Physical Specifications
Specification Size	Product Size：۱۲۰۸۷۳۰ mmPacking Szie：۱۷۵۱۳۰55mm Product net weight：۰.۴۴۱ KG Product gross weight：۰.۵۳۰ KG（excluding power ）
Packing Info	Outer box size: 540290375mmPacking quantity: 40 PCS Packing weight: 22.2KG
Voltage	Voltage input: DC12～55VPower wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) / DC 2.1
Packing List	۱. Industrial switch: 12. Instructions: 1PCS ۳. Qualification certificate, warranty card 1PCS ۴. Mounting ears: 1 pair
Function indication
LED indicator	PWR，۱-۶ Green
PWR	Lighting：PoweredUn-Light：No Power
۱-۶ Green	Blinking slowly: 10/100 links are normalOff: link failure Flash: link data transfer
DIP Function	V,G,E（Open Up, Close Down）
V	V：VLAN mode, ports 1-8 are isolated, and both communicate with ports 9 and 10
G	G：Normal mode
E	E：In extension mode, ports 1-8 are reduced to 10M and can be extended to 250 meters

تمام شده
