Name: سوئیچ POE گیگ اچ آر یو آی HR900-AFG-42N - کالاریزان ( نمایندگی دوربین مداربسته هایک ویژن شیراز )
SKU: 30440027
Price: 360000000 IRR
Availability: OutOfStock

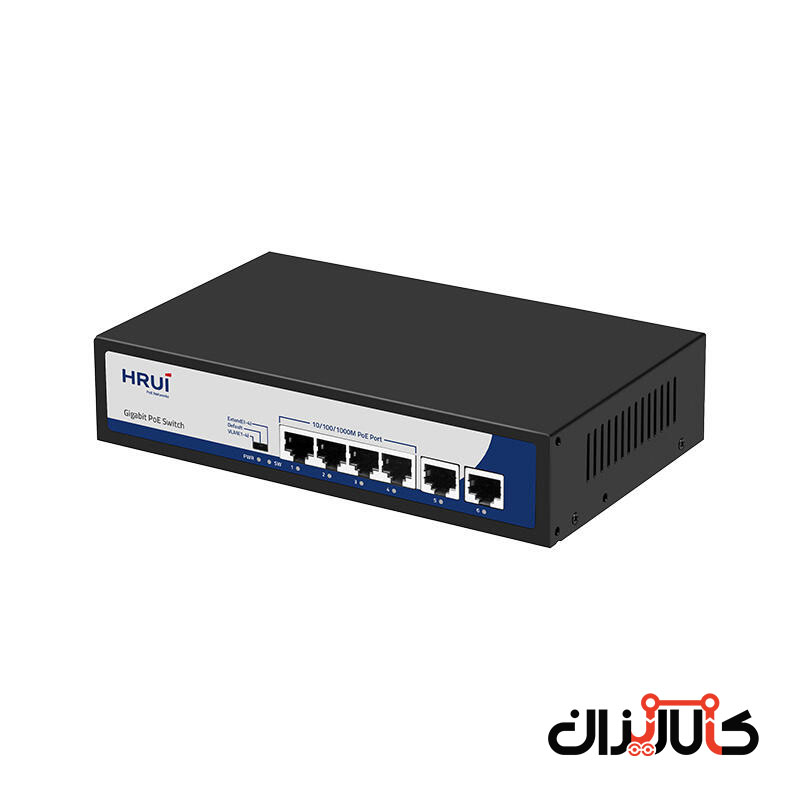

سوئیچ POE گیگ اچ آر یو آی HR900-AFG-42N

۳,۶۰۰,۰۰۰ تومان

سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink گیگ
سوئیچ گیگ PoE
توان کل 65 وات
پشتیبانی پورت های 4-3 از قابلیت اکستند (Extend)
30 ماه وارانتی بی قید و شرط

در انبار موجود نمی باشد

Specifications
I/O Interface
Power	AC INPUT （۱۰۰-240V） ۵۰/60Hz
Ethernet	۴* Gigabit PoE ports2* Gigabit Ethernet ports
Chip	RTL8367（5E19）
Performance
Bandwidth	12Gbps
Packet Forwarding Rate	۸.928Mpps
Package Cache	1Mb
Mac Address	2K
Jumbo Frame	9216bytes
Forwarding mode	Store Forward
MTBF	۱۰۰, ۰۰۰ hour
Standard
Network Protocol	IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af （۱۵.4W）IEEE802.3at （30W）
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)、 EN61000-4-5 (Surge)
Network Media	10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX : Cat5 or above UTP/STP(≤100m) 1000Base-TX : Cat5 or above UTP/STP(≤100m)
Safety certification	CE、FCC、RoHS
Environment Standard
Working Environment	Working temperature: – ۱۰~۵۰ ℃Storage temperature: – ۴۰~۷۰ ℃ Working humidity: 10%~90%, non condensing Storage humidity: 5%~95%, non condensing
Physical Specification
Structure size	Product size: 200* 118* 44mmPackage size: 245* 190* 60mm Product net weight: 0.61Kg Product gross weight: 0.91Kg
Packing information	Outer box size: 520* 320* 400mmPacking quantity: 20 sets Packing weight: 19.2KG
Supply voltage	Input voltage: AC 100-240 V 50/60HzPower supply: 52V1.25A
Packing list	Switch, 1 PCSPower cord, 1PCS Manual and certificate of conformity, 1 PCS
Functional indication
PWR (Power light)	PWR(Power indication), Mode(DIP indication), 1-6 Green light(Link&Data)
PWR	On: Powered onOff: Powered off
Mode	On：VLAN(Port isolation)Off：Default(Normal mode) Flashing：Extend(Link extension)
۱-۶ Green light	On：Link connection is normalOff：Link not working Flashing：Data transmitting
VLAN	Port isolation: 1-4 ports realize isolation between the each port of the monitoring network and interworking with the uplink port to protect internet security.
Default	Normal mode, all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive
Extend	In the link extension mode, the 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M
